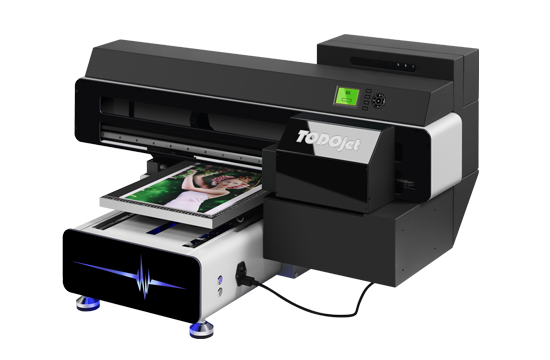

2021 Series TD-UV3050

2pcs Epson F1080 heads for CMYK+WDirectly printing on any substrate
Detail Display
Products Parameters
2pcs Epson F1080 heads for CMYK+W
Anti-collision function for printheads
Air cooling system
White ink circulation system
Max printing height is 10cm
Suction platform
Rotary printing supported
Detail Display
All products are subject to strict quality control and they are certified according to the corresponding standards.

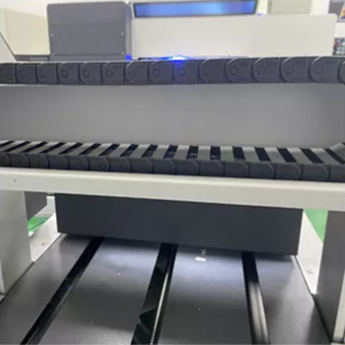

High speed silent drag chain
Worry-free quality, safe and reliable, long service life

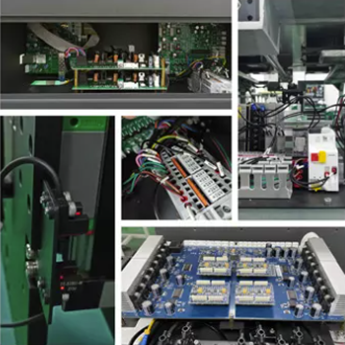

Neat and simple circuit layout
The power board has high integration, good stability and neat wiring

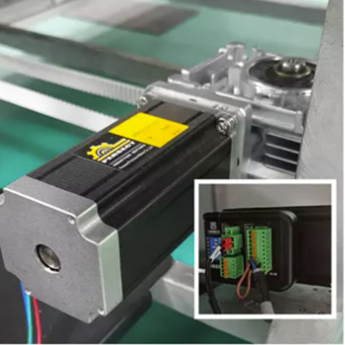

Brand reduction and servo motor
Excellent workmanship / high performance / high precision

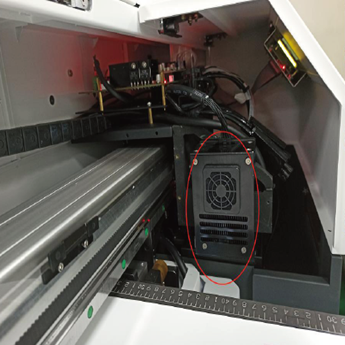

Air Cooling System
Using air cooling to speed up the convection between the heat sink and the air
Products Parameters
Model TD-UV3050
Print head 2pcs Epson F1080
Print size 360*420mm
Max print height 10cm
RIP software Photoprint
Max resolution 720*1440dpi
Ink type UV ink
Print color CMYK+W
Operating environment 20-30℃ 35-65RH
Voltage 110V-220V
Print speed 720*720dpi 4sqm/h, 720*1080dpi 3sqm/h, 720*1440dpi 2sqm/h
Machine size/net weight 800*1180*630mm/100kg
Packing size/gross weight 950*1320*830mm/120kg
Print materials Acrylic, glass, plastic, pvc, wood, metal, etc
