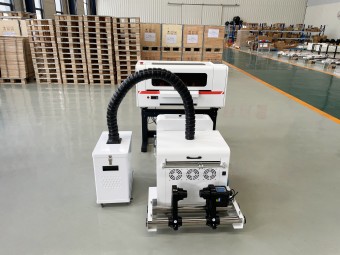

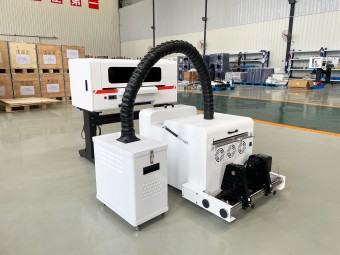

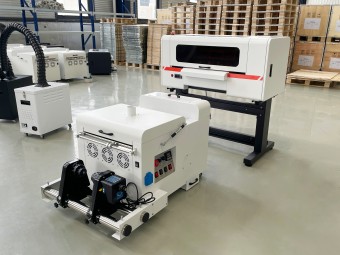

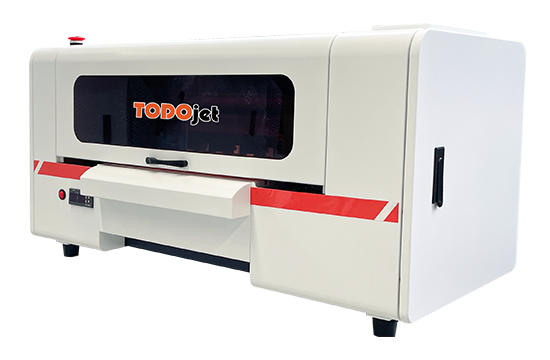

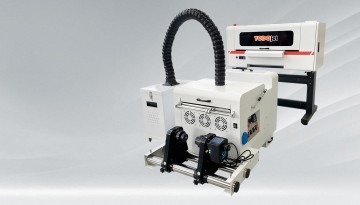

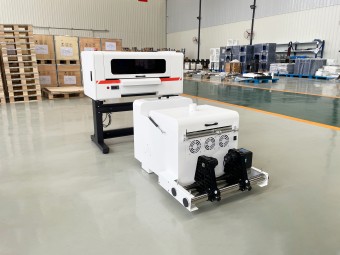

DTF Printer-A3

CMYK+ Fluorescent Color+ White
Printhead: 2PCS EPSON F1080
Printing width: 30cm
Printing Speed: 4.5sqm/h (about 15m/h)
Software: Maintop/Photoprint
Ink type: Pigment Ink
Advantages
Detail Display
Product Parameters
Work Flow
Printing Video
Advantages
CMYK+ Fluorescent Orange + Fluorescent Green + White
No limit on fabric materials
No need pre-coating
No need plate making
No need contour cutting
Environment-friendly pigment ink
Small invest, large benefit
Detail Display
All products are subject to strict quality control and they are certified according to the corresponding standards

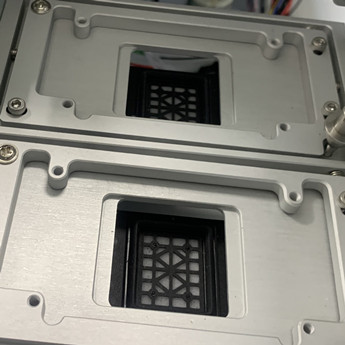

Up and down cap station
Better seal performance for the printhead
Temperature control
Front and back, 2 stage heating
Hiwin guide rail
Printing more stable and quiet
Good working performance
Fluorescent orange and green are support
Product Parameters
Print head 2pcs Epson XP600 heads
Print speed 3-4.5sqm/h
Accuracy

720*720dpi 4pass

720*1080dpi 6pass

720*1440dpi 8pass

Ink type Pigment ink/Transfer film ink
Media Maximum Width 32cm width
Media thickness 1mm adjustable
Media type PET film A3 size sheet / 30cm width roll

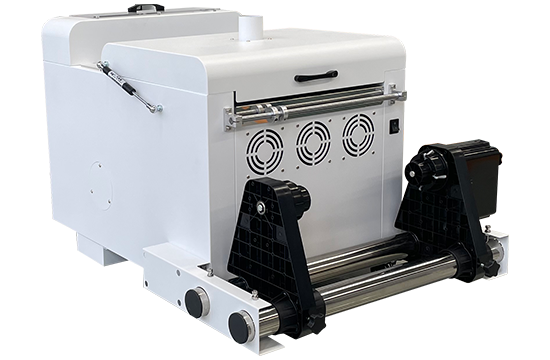

Heating system Auto constant temperature drying system
Temperature 160-170 cold/hot to tear
RIP software Maintop
Power AC110-220V, 50-60Hz, USB2.0, 350W
Operation environments     Temperature 20-30℃, Humidity 45%-65%
Machine size 940*500*580mm
Packing size 1000*640*640mm
Gross weight 89kg
Max media 30cm width
Heating size 40cm
Voltage 220V/5A
Power 3.4kw
Media transmission     New belt type
Take up function Automatic inductive
Machine size 850*650*600mm
Packing size/Weight     790*610*710mm/50kg
Work Flow
How to finish a personal T-shirt
1
Printing
2
Dusting, shaking and drying powder
3
Heat transfer
4
Finished product
Watch Video

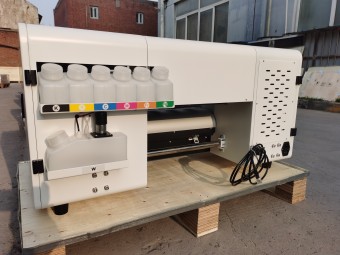

Packaging Details

Ocean Shipping Is The Best Transport,If The Product Is Urgent, Contact Us To Check The Best Freight For Reference.If Export To European Countries,The Wooden Box Will Be Fumigated.If Container Is Too Tighter,We Will Use PE Film For Packing Or Pack It According To Customers Special Request.
