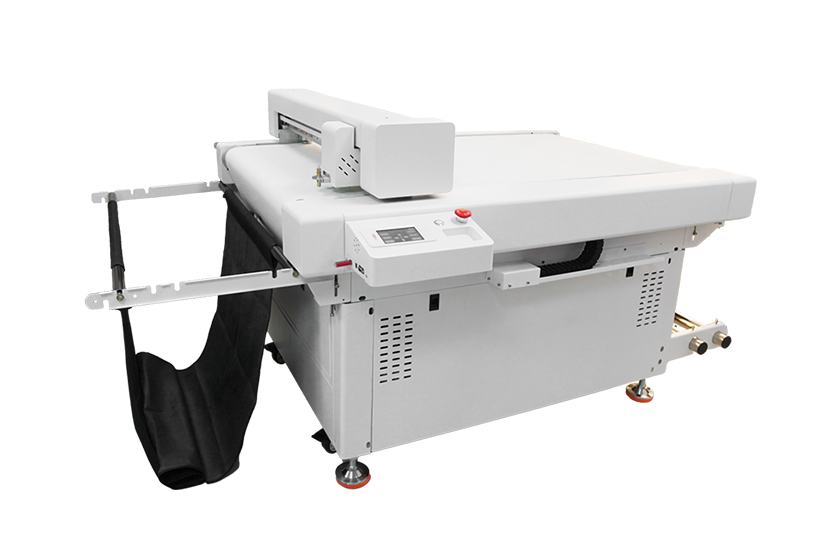

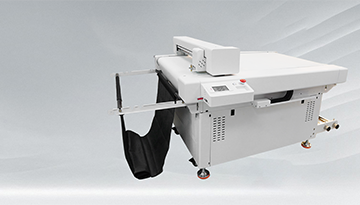

DTF Cutter

Advantages

Intelligent DTF cutting device is specially used for PVC,leather, kraft paper,self-adhesive,TPU, reflective film and other flexible materials.

Features

The cutting machine is usually used with our 60cm DTF printer to cut the PET film after printing is completed.

High power vacuum pump

Fine workmanship, strong power

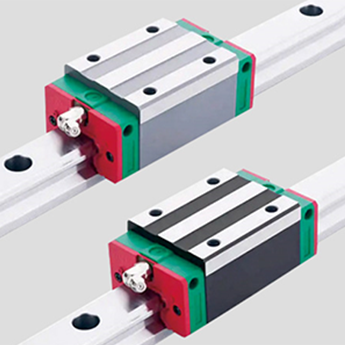

lmported linear guide rail

Comprehensive sealing system, smooth sliding without jamming, high positioning accuracy

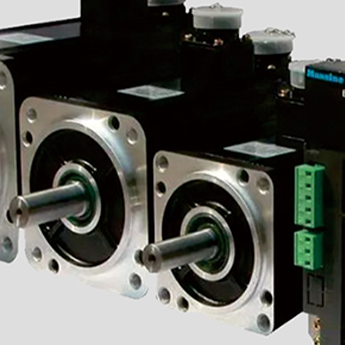

Servo motor

Small vibration, low heat, smooth operation at low speed

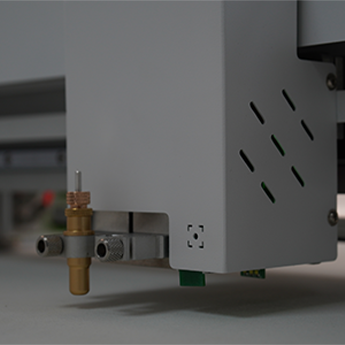

Pneumatic device

Small size, high precision

Product Parameters

Model	C7090
Max cutting speed	1000mm/s
Cutting thickness	≤1.2mm
Cutting material	Crystal labels / DTF pet film / self-adhesive Vinyl, etc
Cutting pressure	1000g
Cutting method	Half cutting / Full cutting
Pen/Blade type	Double blade structure
Media hold method	Vacuum suction
Drive method	High speed servo drive
Mechanical resolution	±0.005mm
Standard interface	USB / U disk /Ethernet (WIFI Optional)
Compatible software	Signmaster / Coreldraw / AI /AUTO CAD
Screen size	6.0 inches touch screen
Power supply	100-240V 50/60Hz(auto switching)
Cutting area	700*900mm,unlimited cutting length( auto section pulling materials)
Machine size/weight	146013001000mm 220kg
Package size/weight	160013001100mm 240kg

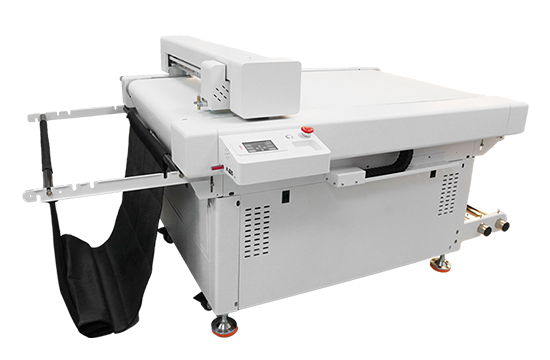

DTF Cutter-C7090
