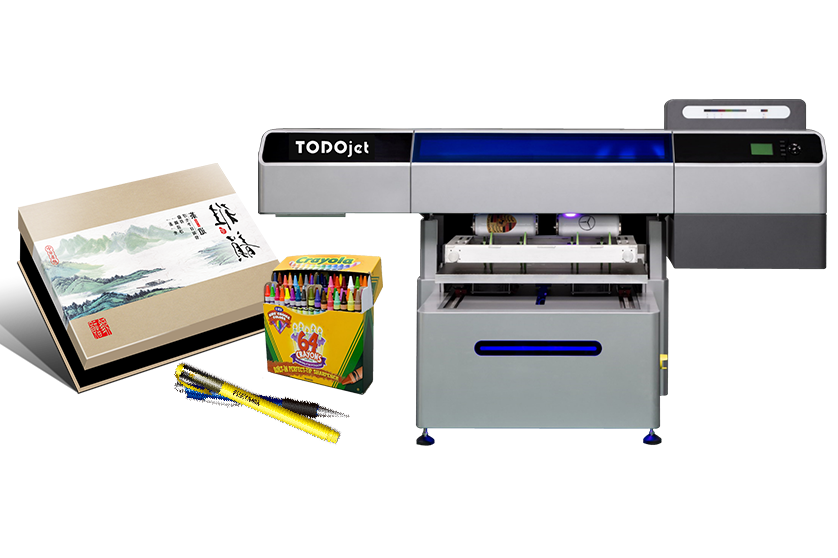

2021 Series TD-UV6040

2pcs Epson F1080 heads for CMYKLcLm+W
2pcs Epson i3200 heads for CMYK+W
WATCH DEMO VIDEO
Advantages
Detail Display
Product Parameters
Advantages
Epson F1080 and i3200 two heads are optional
Anti-collision function for printheads
Auto adjust the printing height
Max printing height is 20cm
Suction platform
Air cooling system
White ink circulation system
Rotary printing supported
Detail Display
All products are subject to strict quality control and they are certified according to the corresponding standards.

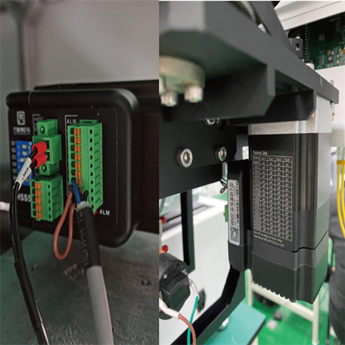

Servo Motor
XY axes are servo motors

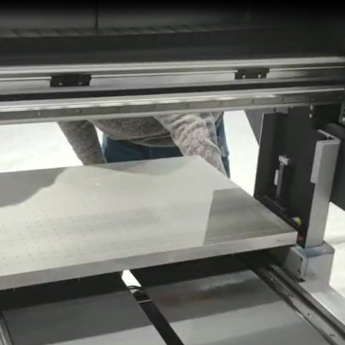

Max Printing Height
20cm, auto detect printing height

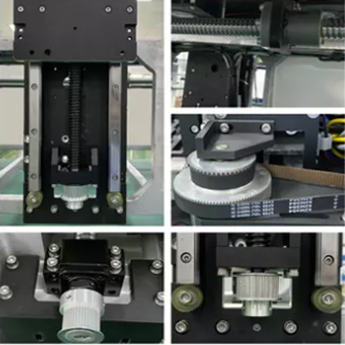

Drive lifting structure
Easy to use, guaranteed quality

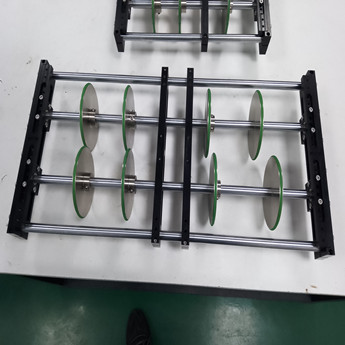

Support Cylinder and Bottle Printing
Special rotary clamp can meet bottles (with handle) printing
Product Parameters

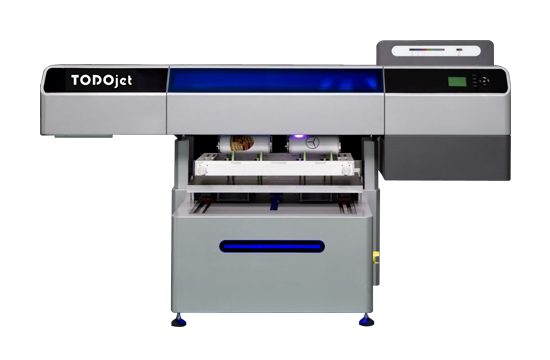

Model TD-UV6040
Print head 2pcs Epson i3200/ 2pcs Epson F1080
Print size 610*420mm
Max print height 20cm
RIP software Photoprint
Max resolution 720*1440dpi
Ink type UV ink
Print color CMYK+W/ CMYKLcLm+W
Operating environment 20-30℃ 35-65RH
Voltage 110V-220V
Print speed 720*720dpi 12sqm/h, 720*1080dpi 10sqm/h, 720*1440dpi   8sqm/h
Machine size/net weight 820*1710*780mm/140kg
Packing size/gross weight 970*1860*980mm/180kg
Print materials Acrylic, glass, plastic, pvc, wood, metal, etc
