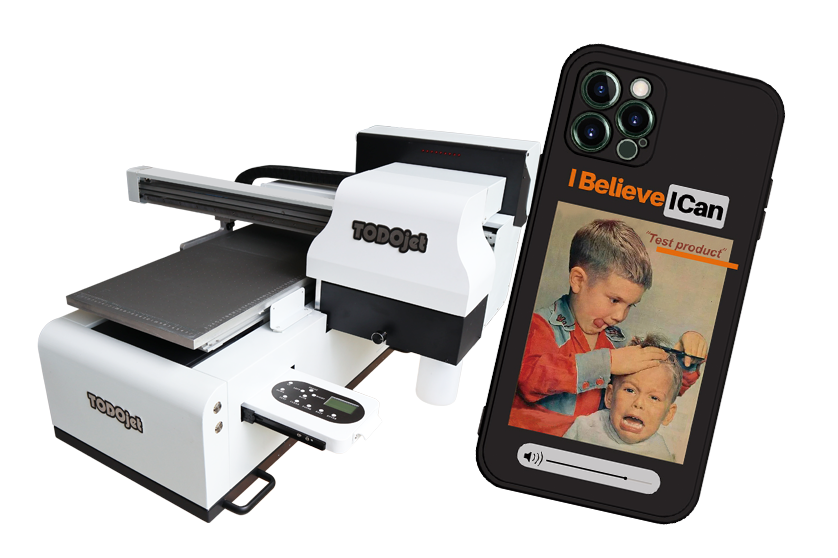

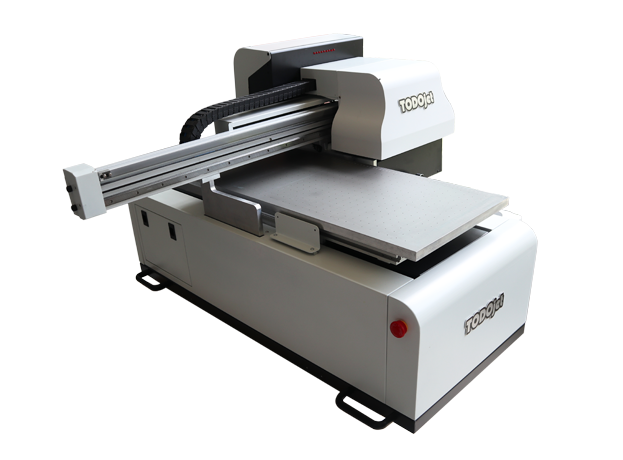

Classical TD-UV3050

Two Epson XP600 heads for CMYK+W+V
UV-LED directly print on any substrate
WATCH DEMO VIDEO
Advantages
Detail Display
Product Parameters
Color Order
Video
Samples
Accessories
Advantages
Two Epson printheads support CMYK+W+V
User-friendly control panel, durable suction table
Continuous white ink circulation even if machine turn off
Auto cleaning system
Auto height detecting
Max print height is 15cm
Support bottles&mugs printing
Detail Display
All products are subject to strict quality control and they are certified according to the corresponding standards.

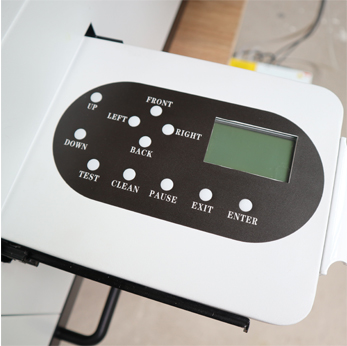

Humanized Operation Panel
Clear mark, makes work easier

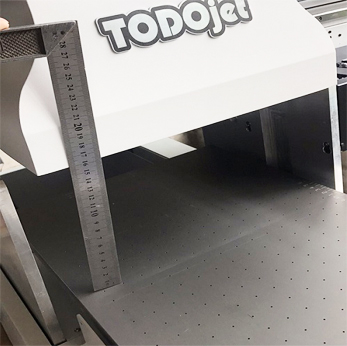

Max Printing Height
15cm, auto detect printing height

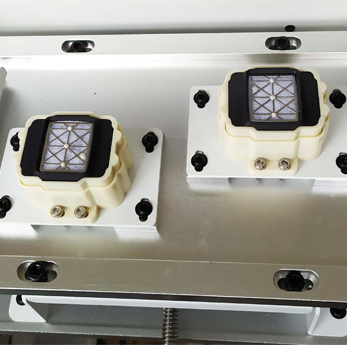

Up and down cap station
Better seal performance for the printhead

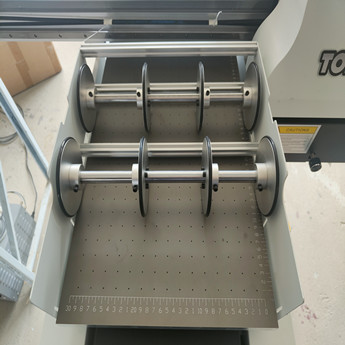

Support rotary printing
Special rotary clamp can meets bottles (with handle) printing
Product Parameters
Model TD-UV3050
Print head 2pcs original Epson XP600
Print size 300*550mm
Max print height 15cm
RIP software Maintop/Photoprint
Max resolution 360*1440dpi
Ink type UV ink
Print color CMYK+W+V
Operating environment 18-28℃ 20-80RH
Voltage 110V-220V
Print speed 4pass 4sqm/h, 6pass 3sqm/h, 8pass 2sqm/h
Machine size/net weight 1040*1010*640mm/120kg
Packing size/gross weight 1150*1100*860mm/150kg
Print materials Acrylic, glass, plastic, pvc, wood, metal, etc

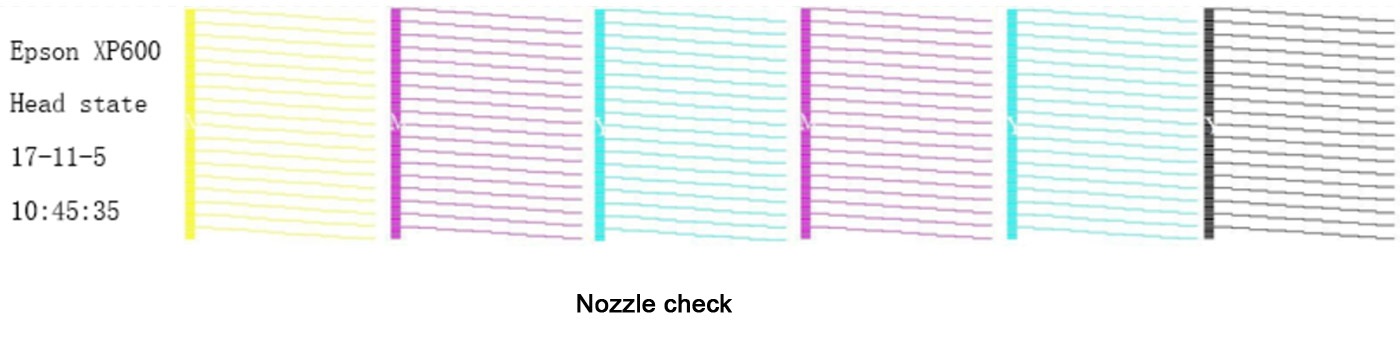

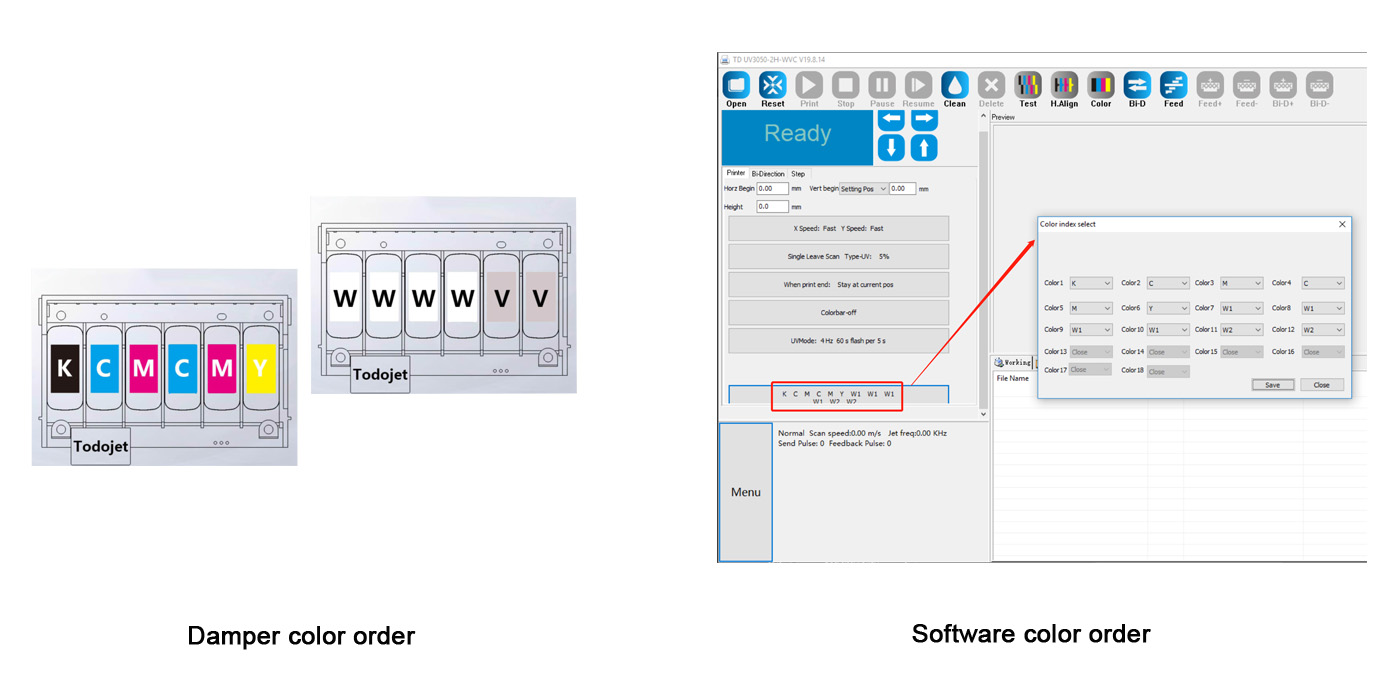

Color Order
Watch Video
Samples
Accessories
Print head
UV ink
Rotary clamp
Mould/Jigs/Frame

UV AB Film Application

Mobile phone case shop, ceramic products, stainless steel material, LOGO icon, acrylic material, glass material











TODOjet UV AB Film Applicable Material

To meet various shapes, a variety of materials to paste
