Manufacturer TODOjet Digital T Shirt Textile Printing Machine PET film DTF printer with double 4720/XP600/i3200 Print Head
One stop solution of TODOJet DTF printer. TODOjet is a professional supplier, besides UV printer and DTF printer,we can also offer you one stop solution with related consumables, such as UV ink, pigment ink, pet film, powder machine,etc.
Digital T Shirt Textile Printing Machine PET film DTF printer with double 4720/XP600/3200 Print Head
Technical Parameters
| Model | TD-A3DTF-Pro |
| Print head | 2*Original Epson XP600 |
| Print speed | High speed:4.5 sqm/h HD mode:3 sqm/h |
| Color mode | CMYK+W/CMYK+W+Fr+Fg |
| Print width | 30mm |
| Media feeding | Tension feeding |
| Ink supply system | Automatic ink supply White ink stirring and circulating |
| Power supply | AC 110V/220V,50/60Hz |
| RIP software | Maintop(standard)/Photoprint(option) |
| Working environment | 20-28℃,humidity 50-70ph |
| Weight | 110kg |
| Package size | 970*620*655mm/780*610*710mm |
| Model | DTF-6002E | DTF-6004E |
| Print head | 2-i3200A1 | 4-i3200A1 |
| Print speed | 4 pass:12 sqm/h 6 pass:8 sqm/h | 4 pass:22 sqm/h 6 pass:8 sqm/h |
| Print width | 600mm | |
| Machine size | 1737*750*1390mm | |
| Packing size | 1870*880*720mm | |
| Heating system | Pre-heater/rear-heater as standard Infrared&fan drying system as option | |
| RIP software | Maintop(standard)/Photoprint(option) | |
| Model | DTF-1202E | DTF-1204E |
| Print head | 2-i3200A1 | 4-i3200A1 |
| Print speed | 4 pass:15 sqm/h 6 pass:10 sqm/h | 4 pass:24 sqm/h 6 pass:20 sqm/h |
| Print width | 1200mm | |
| Machine size | 2500*750*1500mm | |
| Packing size | 2650*880*720mm | |
| Heating system | Pre-heater/rear-heater as standard Infrared&fan drying system as option | |
| RIP software | Maintop(standard)/Photoprint(option) | |
Machine Display


Advantages
1.Hoson main board offers nice interactive performance with computer software which is easy to operate. Highly-integrated power supply board, good stability, neat wiring.

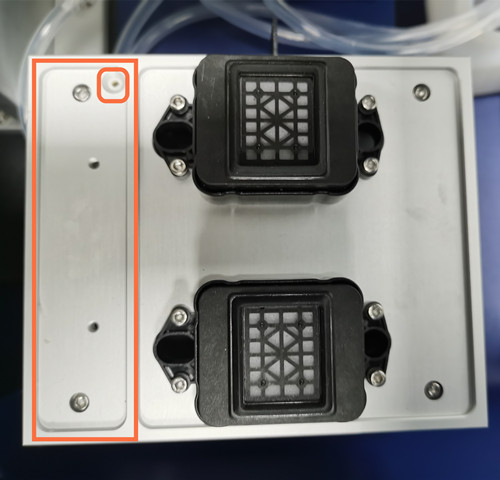

2. Waste ink comes from the groove and holes under the wiper, ensuring clean and tidy, pollution-free

3. White ink stirring-and-circulating system prevents nozzle clogging and low white ink density caused by white ink precipitation

4. Lack of ink alarm. Ink is lower than a certain level will start alarming.

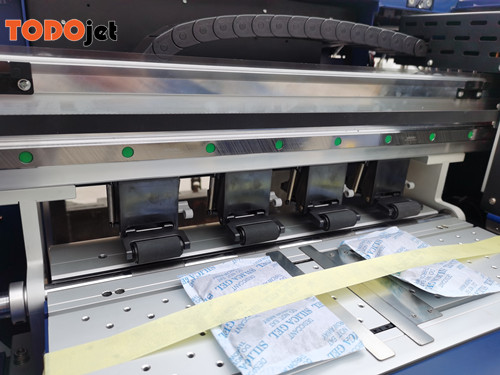

5. HIWIN brand guide rail from Taiwan, high accuracy and stability, thus realize good quality printing

Product Package

After-sale Service
1. We provide 12months warranty for the printer, except print head. During warranty, any parts are destroyed, free repair or send a new one for you;
2. We provide lifetime maintenance;
3. As our agent, technicians are available to go to your site to provide service; if show our printers on expo, free door-to-door service provided during expo.
