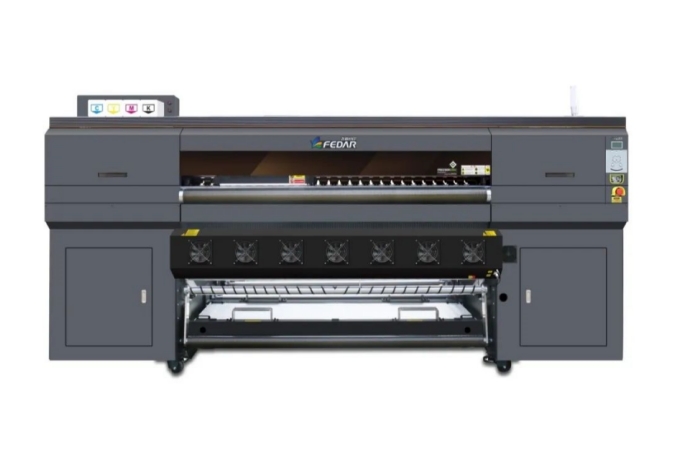

Wholesale Fedar FD51915E Sublimation Textile Fabric Printing Machine with 1.9m Wide Format and 15 Epson Print Heads
Fedar FD51915E Sublimation Printer Specifications:
Printhead: 15*Epson I3200-A1 Micropiezo Printhead
Printhead Resolution: 3200DPI
Printing Speed: 1PASS: 610㎡/h
Print Width:1900mm
Ink: Dye Sublimation Ink, Water-based Ink(Dye or Pigment)
Color: CMYK Compatible of 6 color printing
Media: Transfer Paper
RIP Software: Maintop, Flexiprint, photoprint, ONYX, NeoStampa
Fedar introduces its high-end digital printer, the FD51915E, equipped with 15 Epson I3200-A1 print nozzles for exceptional performance. With a high-speed printing mode of 610 m²/h, it meets the needs of mass production while ensuring stability and precision. Epson’s VSDT (Variable Droplet Technology) enables precise control of ink droplet size, resulting in fine, lifelike prints with superior color reproduction.
The FD51915E maintains platform precision within 3 wires, ensuring superior print quality. Its robust design ensures stable operation even at high speeds, thanks to an industrial quenching process. Equipped with a 15-liter continuous ink supply system, it supports multi-color printing schemes for realistic patterns.
Standard features include a 2,000-meter paper supply and unwind control system, with an optional 10,000-meter paper unwind base for high-speed continuous printing. The FD51915E emphasizes energy efficiency and environmental sustainability, with ink distribution on demand and smart dryers that ensure fast drying while saving energy.
Fedar FD51915E sublimation printer specifications:
| Model | FD51915E |
| Printhead | Type: Epson I3200-A1 Micropiezo Printhead |
| Quantity: 15 | |
| Resolution: 3200DPI | |
| Head Property: Auto-clean and moisturize | |
| Print Speed | 240*1800dpi 1PASS:610㎡/h |
| 240*3600dpi 2PASS:300㎡/h | |
| 360*1800dpi 1PASS:430㎡/h | |
| 360*3600dpi 2PASS:220㎡/h | |
| Printing Width | 1900mm |
| Ink Type | Sublimation Ink Color: CMYK Compatible of 6 color printing Moisture Mode: Auto-capping Pump Moisture |
| Print Media | Transfer Paper |
| RIP Software | Maintop, Flexiprint, photoprint, ONYX, NeoStampa |
| Image Format | JPG, TIFF, BMP, PDF… |
| Computer System | Win7 Win8 Win10 |
| Power | 210-230V Machine: 15.5KW Dryer: 10.8KW |
| Dryer | Extra Heating System |
| Media Transfer | Double Power Take up Media System |
| Moisture Mode | Full Seal Auto Moisture and Cleaning |
| Optional Device | Ink Level Alarm System Auto Tension Take-up Media System |
| Work Environment | Temperature: 18-30℃ Humidity: 35-65% |
| MachineDimension | 3900*1540*2000mm, PackingSize: 3970*1300*1930mm |
